Deluxe aviation headset

New product

NC-300D it's a deluxe headset model - designed for demanding users who spend a lot of time in the air. In designing this model, we tried to create a durable design that gives maximum comfort and providing high quality parameters of the processed audio signal.

More details

43891 Items

in stock

899,00 zł
tax incl.

-100,00 zł

999,00 zł tax incl.

Shipment: finished products 2-3 business days, non-prefabricated products - up to 15 business days.

Product Options
HEADBAND
CHROME

CHROME

CABLE PROFILE
STRAIGHT

STRAIGHT

SPRING

SPRING
[ + 40,65 zł]
EAR CUPS COLOR
Color may differ slightly from photos due to different monitor settings









CABLE - SHELL CONNECTION
For certain configurations, e.g. with an additional phone or MP3 connector monted on cable, the multi-plug must have more than 6-pins, therefore, in such a configuration, the cable disconnected from the shell can only be made on the LEMO 10-pin connector
PERMANENTLY

PERMANENTLY

mXLR 6-PIN

mXLR 6-PIN
[ + 80,49 zł]
ELECTRET 2.2 kOhm (typical for aviation headsets)

ELECTRET 2.2 kOhm (typical for aviation headsets)

DYNAMIC 600 Ohm

DYNAMIC 600 Ohm
[ + 80,49 zł]
DYNAMIC DIFFERENTIAL 200 Ohm

DYNAMIC DIFFERENTIAL 200 Ohm
[ + 121,14 zł]
FOR MILITARY HEADSETS (5 Ohm)

FOR MILITARY HEADSETS (5 Ohm)
[ + 121,14 zł]
PTT BUTTON ON SHELL
Push-to talk button mounted on the shell. Turning on transmission.
WITHOUT PTT ON THE SHELL

WITHOUT PTT ON THE SHELL

ON RIGHT SHELL

ON RIGHT SHELL
[ + 40,65 zł]
HEADSETS SPEAKER TYPE
1-COIL

1-COIL

2-COILS

2-COILS
[ + 80,49 zł]
PLUG TYPE
How to choose a right plug type
A detailed description of all offered by us connectors contains a file Connectors.pdf.pdf
GA standard plugs (PJ, ZS, S1, Y2, U174/U) are offered with a aviation preamp.
K (Kenwood)


M (Motorola)


PJ (GA standard, preamp included)


PJ (PJ055, M642/5-1)

[ + 81,30 zł]
Y4 (NC-33M)

[ + 40,65 zł]
U174/U (NATO)

[ + 97,56 zł]
LEMO 6-PIN (BOSE)

[ + 121,95 zł]
S1 (Icom A-6, A-24)


ZS (airborne ustandard)

[ + 39,84 zł]
S5 (Icom IC-A16)

[ + 162,60 zł]
OPTIONS
CARRYING BAG

CARRYING BAG
[ + 72,36 zł]
REMOTE PTT (PTT socket required)

REMOTE PTT (PTT socket required)
[ + 23,58 zł]
EXTERNAL PTT SOCKET

EXTERNAL PTT SOCKET
[ + 40,65 zł]
VARIO, MP3 SOCKET (2-coils speakers required)

VARIO, MP3 SOCKET (2-coils speakers required)
[ + 40,65 zł]
PHONE SOCKET AHJ/CTIA  (2-coils speakers required)

PHONE SOCKET AHJ/CTIA (2-coils speakers required)
[ + 81,30 zł]
PHONE SOCKET, OMTP (2-coils speakers required)

PHONE SOCKET, OMTP (2-coils speakers required)
[ + 81,30 zł]
EXTERNAL PTT CONNECTOR

EXTERNAL PTT CONNECTOR
[ + 81,30 zł]
PHONE CONNECTOR, AHJ/CTIA (2-coils speakers required)

PHONE CONNECTOR, AHJ/CTIA (2-coils speakers required)
[ + 121,95 zł]
PHONE CONNECTOR, OMTP (2-coils speakers required)

PHONE CONNECTOR, OMTP (2-coils speakers required)
[ + 121,95 zł]
VARIO, MP3 CONNECTOR (2-coils speakers required)

VARIO, MP3 CONNECTOR (2-coils speakers required)
[ + 81,30 zł]
4-FIELD, 3.5MM, JACK-JACK-CABLE

4-FIELD, 3.5MM, JACK-JACK-CABLE
[ + 11,38 zł]
BAG FOR PINK HEADSETS

BAG FOR PINK HEADSETS
[ + 88,62 zł]
AUDIO ADAPTER,  JACK 3,5mm - USB-C

AUDIO ADAPTER, JACK 3,5mm - USB-C
[ + 23,58 zł]

Data sheet

Noise reduction method Passive
Passive noise suppression -26dB
Speakers frequency response 20-17000 Hz
Speakers impedance 150 Ohm (mono), 300 Ohm (stereo)
Speakers effectiveness 101 dB
Microphone type electret with noise cancellation (basic model)
Microphone frequency response 100-8000 Hz
Microphone impedance 220-2200 Ohm
Microphone sensitivity -33 dB +/-4 (basic model)
Weight 487g
Connector type PJ 055, PJ068 (basic model)
Cable length 1,5m
Volume control Yes, independent L/R
Mono / stereo switch Yes
Detachable cable (multi pin connector) Optional
GA microphone preamp Yes
Material overlay Yes
Ear seals type Gel

More info

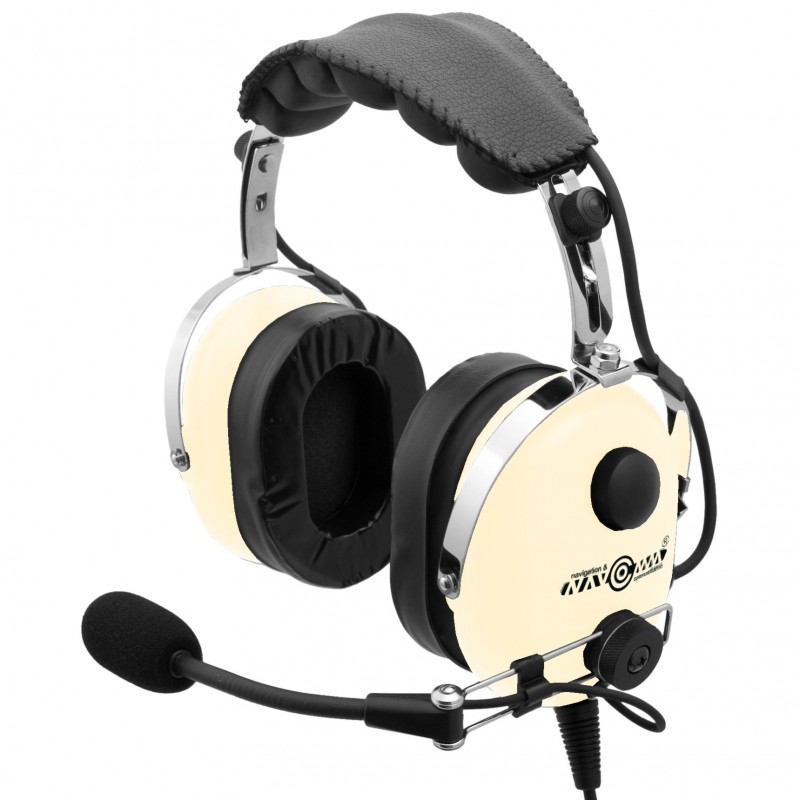

Headphones NC-300D are equipped with a microphone arm of the hybrid construction - part fixed to the shell has a wire skeleton and a microphone was placed on the gooseneck boom. Both elements combines the hinge. This construction allows you to keep all the advantages of both design solutions while eliminating their main drawbacks. More than a design such a wider range of adjustment which significantly improves the ability to properly adjust the position of the microphone. Attaching the arm to the body provides a metal collar with pressure adjustment. The microphone arm rotates 320? angle that allows comfortable use headphones while sitting on both the left and the right seat. As part of the personalization of the kit (above), other types of microphone booms are available, as well as the possibility of ordering headphones without the boom that allows only listening.

Headband in NC-300D is made of chrome-plated steel. Its size is adjustable by means of two knurled screw. The headband features a new, very comfortable topsoft velcro, which facilitates its replacement in case of damage.

NC-300D is equipped with a standard gel earpads. Located inside semi-liquid silicone ensures a perfect fit to the head. "Gels" is the only reasonable solution for people who want or need to wear glasses - their elements will not be hurt at the site of contact with the earpads. More than that your package includes soft, made of cotton overlay material mitigate the effects of prolonged contact of skin with an airtight surface of the gel inserts. Color overlay material is chosen randomly.

NC-300D has passive electronics, which includes speakers with bandwidth 20-17000 Hz, and electret microphone with noise compensation. As part of the personalization of the kit (above), other types of microphone inserts are available. Each speaker has a separate volume control, it is also possible to switch it to  mono / stereo mode. NC-300D are terminated with gold-plated contacts type PJ (PJ-055 and PJ-068), and the cable has an additional reinforcing braid.

As an optional for model NC-300D offer specially tailored transport bag. For her performance was used waterproof nylon 1680D, and the bottom and side walls sewn thick sponge to protect the handset from damage during transport.

MAJOR FEATURES:

  • Noise suppression: -26 dB
  • Connector type: PJ-055 i PJ-068 (basic model)
  • Microphone rotates angle: 320°
  • Supplied with gel pads and cotton overlays
  • Construction: aesthetic with high-quality materials
  • Warranty: 5 years
